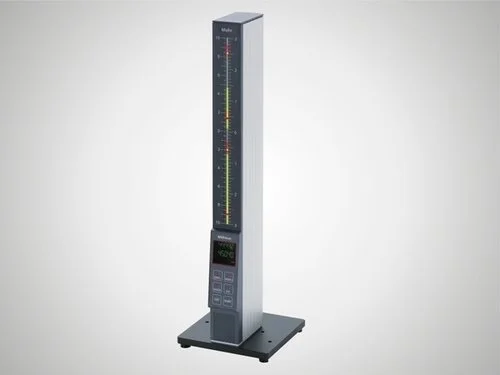

New - Build-To-Order MAHR MILLIMAR S 1840 F | Measuring Machines

Description

Easy-to-read 3-color analog display
Measurement in conjunction with inductive probes (e. g. Mahr P2004) or electronic plug gages, etc.
2 inputs for inductive probes (compatible with probes from Mahr, Mahr Federal, Tesa)
Extensive calculation of input signals - ±A, ±B and all combinations
Dynamic measurements - Max, Min, Max-Min, Average
Programmable either via the integrated keypad or the RS232 interface by means of MS -Windows® configuration software
Programmable warning and tolerance limits (exceeding the limit causes the color to change from yellow to red)
Backlit, two-line LCD for displaying measured values, help texts and units of measurement
1 analog output
3 digital inputs (e.g. measurement start, master measurement)
3 digital outputs for good – reject – rework, measuring time
