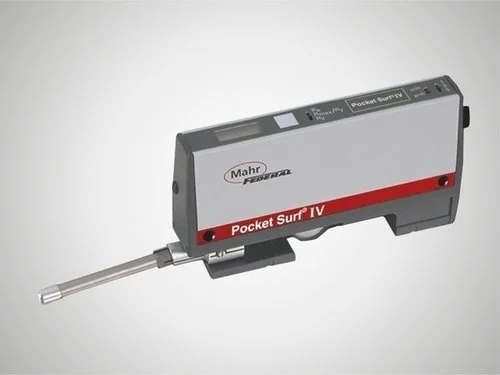

New MAHR MARSURF POCKET SURF IV | Measurement Kits

Description

Durable cast aluminum housing to provide years of accurate and reliable measuring operations
Can be used to measure four selectable parameters: Ra, Rmax/Ry, Rz
Review all of the parameters after the measurement is complete
Adjustable measuring length based on 1, 3 or 5 times the cutoff wavelength of 0.8 mm/0.030"
Operates in any position – horizontal, vertical, and upside down
Four switchable probe positions – axial or at an angle of 90°, 180° or 270°
Even difficult to reach surfaces such as inside and outside diameters are accessible
MarConnect data output for easy data transfer that is compatible with standard data processing systems
Easy to read LCD presents the measured roughness value in μm or μinch immediately after scanning
Out of range (high or low) and 'low battery' signals are also displayed
Simplified calibration process
Improved battery life with 9V battery that is easy to replace
