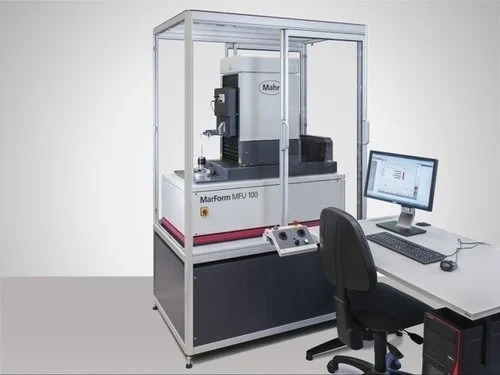

New MAHR MARFORM MFU 100 | Measuring Machines

Description

The journey from high precision measuring axes to competent measurements is often a long one that the MFU 100 has mastered completely. Only the MFU 100 has integrated reference elements for the real-time spatial compensation of geometric deviations, recording all profiles as high precision 3D coordinates.

For decades, MarForm measuring machines have been recognized for their accuracy and stability. The new MarForm MFU 100 was developed with the claims of testing the shape and position features of product parts in a one liter measuring volume close to the production area and at a reasonable cost. In doing so, it has taken our long experience into a new dimension.

MarForm MFU 100 is a precision reference form measuring center. Its exceptionally low measurement uncertainty increases the tolerance margin for your production processes, thereby lowering production costs.
Circular roundness measuring axis (C)
Motorized centering and tilting table (X, Y, A, B)
Vertical straightness measuring axis (Z)
Horizontal straightness measuring axis (X)
Tangential multifunction axis (Y)
Motorized length measuring probe T7W
MarWin Evaluation Software for form and position features
