New - Build-To-Order MAHR PRECIMAR LINEAR 100 | Measuring Machines

Description

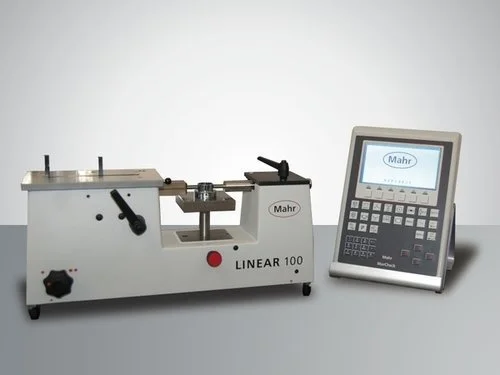

The LINEAR 100 is a universal, easy to operate length measuring instrument for quick and precise outside and inside measurements up to 100 mm, directly on the production line. The simple design of the instrument speeds up the measurement process and makes it quick and easy to adapt to new measuring tasks.
Cushioned measuring spindle with 2 preselectable measuring forces
Constant measuring force over the entire measuring range
Complies with Ernst Abbe's comparator principle for outer measurements
Infinitely adjustable measuring table height for accurate adjustment of measuring positions
Combined outer/inner measurement possible without the need for recalibration
Easy change measuring anvils can be selected to match specific measuring tasks
Sturdy cast body to eliminate stresses and bending errors
Height adjustable support tables for inner and outer measurements
MarCheck measurement display (with optional stand): including 2 channels, USB connection for printer or stick, USB connection for PC, and RS 232 interface for easy transfer of measured values to PCs
Measured values can be transferred to all MS Windows® programs (e.g. Microsoft Excel®) via the MarCom software (optional)
Various accessories available upon request
