New MAHR MAROPTO FI 1040 Z | Measuring Machines

Description

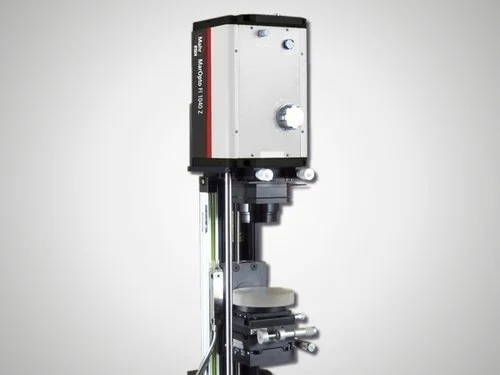

Powerful 40 mm Fizeau interferometer for flat or spherical surfaces
The MarOpto FI 1040 Z is a powerful interferometer that can provide non-contact measurements of flat or spherical surfaces and transmitted wavefronts. The MarOpto FI 1040 Z is therefore ideal for measuring optical components such as flats, prisms, lenses or precision metal parts such as bearings, sealing surfaces and polished ceramics. Measurements can be performed using simple basic visual fringe inspection, IntelliPhase static spatial carrier analysis, or phase-modulated interferogram analysis. The MarOpto FI 1040 Z offers flexibility and unprecedented performance to handle today's industrial applications.
6x / 3x zoom for workpieces with a diameter of up to 1.5 mm
3 modes of interferogram analysis: Phase shifting, IntelliPhase – static spatial carrier analysis, or fringe tracing (automated or manual)
Small size allows easy integration into OEM systems
Compact, rugged design
Transmission spheres from F / 0.7 to F / 6.0
