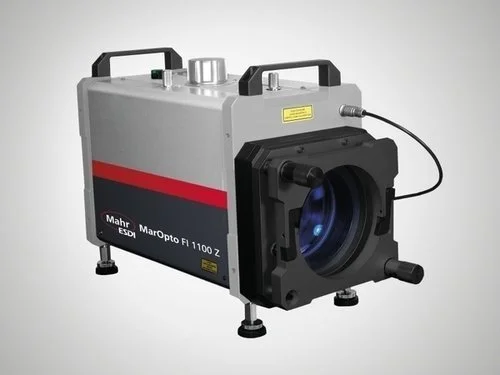

New MAHR MAROPTO FI 1100 Z | Measuring Machines

Description

High accuracy measurement capability with unsurpassed flexibility and versatility
The MarOpto FI 1100 Z provides non-contact measurements of flat or spherical surfaces along with transmitted wavefront measurements of optical components and assemblies. Measurements may be made using basic visual fringe inspection or phase-modulated interferogram analysis. The well-established IntelliWave software offers superior measurement and analysis capabilities. The MarOpto FI 1100 Z provides the versatility and reliability to handle today's advanced applications at unrivalled value for money.
Total USB connectivity option (laptop or desktop) with 1k x 1k true spatial resolution
Excellent versatility, stability and repeatability
1x to 6x zoom, focus and attenuation controls
Vibration-insensitivity can be accomplished via Mahr's IntelliPhase™ static spatial carrier acquisition and analysis software
Compact, lightweight and rugged design
Compatible with all industry standard 4" (100mm) reference optics and accessories.
High-accuracy measurements at an affordable price
Configurations include horizontal, vertical look up and vertical look down. Optional workstations for flats and for radius of curvature measurements.
