New MAHR MAROPTO FI 1150 Z | Measuring Machines

Description

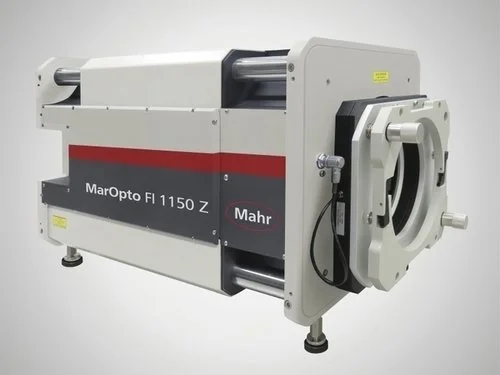

Full featured 150 mm Fizeau interferometer for flat or spherical surfaces
The MarOpto FI 1150 Z provides non-contact measurements of flat or spherical surfaces along with transmitted wavefront measurements of optical components and assemblies. Measurements may be made using basic visual fringe inspection, static fringe analysis, or phase-modulated interferogram analysis. The well-established IntelliWave software offers superior measurement and analysis capability. The MarOpto FI 1150 Z provides the versatility and reliability to handle today's advanced applications.

Total USB connectivity option (laptop or desktop) with 1k x 1k true spatial resolution
Excellent versatility, stability and repeatability
1x to 6x zoom, focus and attenuation controls
Vibration-insensitivity can be accomplished via Mahr's IntelliPhase static spatial carrier acquisition and analysis software
Compact, lightweight and rugged design
Compatible with all industry standard 6" (150mm) reference optics and accessories.
Configurations include horizontal, vertical look up and vertical look down. Optional workstations for flats and for radius of curvature measurements.
