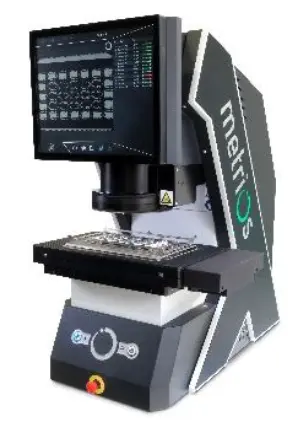

METRIOS CROSS

Description

Technical Data Model METRIOS CROSS
Maximum X-Y axis measurement dimensions mm 265x200
Maximum load dimension on Z axis mm 80
Maximum load weight kg 5
Measurement accuracy(1) μm (5+0.01L [mm]) [μm] (2)
(7+0.01L [mm]) [μm] (3)
Measurement repeatability(1) μm (2+0.01L [mm]) [μm] (2)
(3+0.01L [mm]) [μm] (3)
Machine weight kg 130
Power supply V-Hz 230, or 110-50/60
LxWxH mm 400x800x900
Requires a welded steel table or granite surface
(recommended size) LxWxH mm 500x850x700

(1) ±2𝝈 at temperatures of +20 ± 1,0°C on clean and rectified surfaces. L = measured length
(2) Accuracy without moving table
(3) Accuracy with moving table
