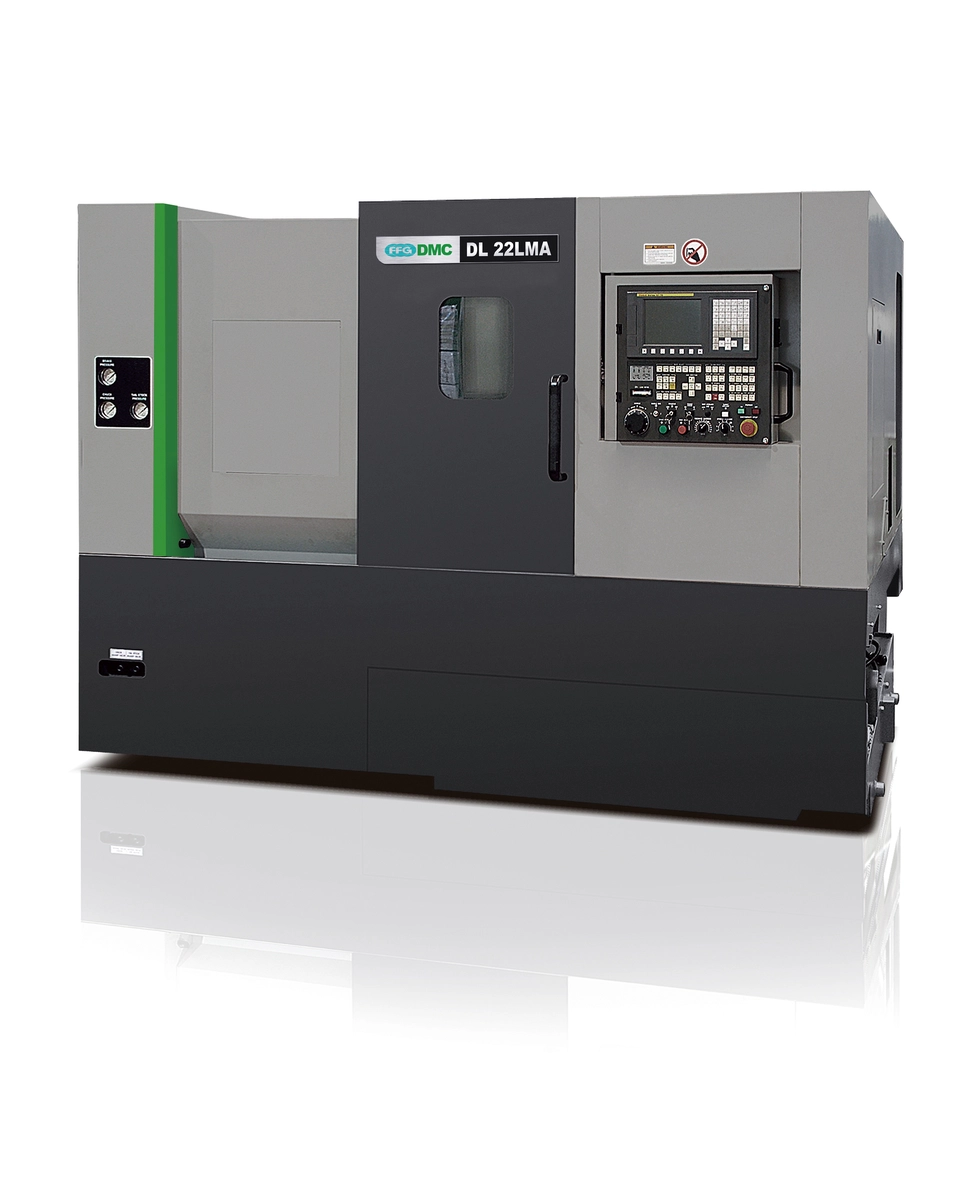

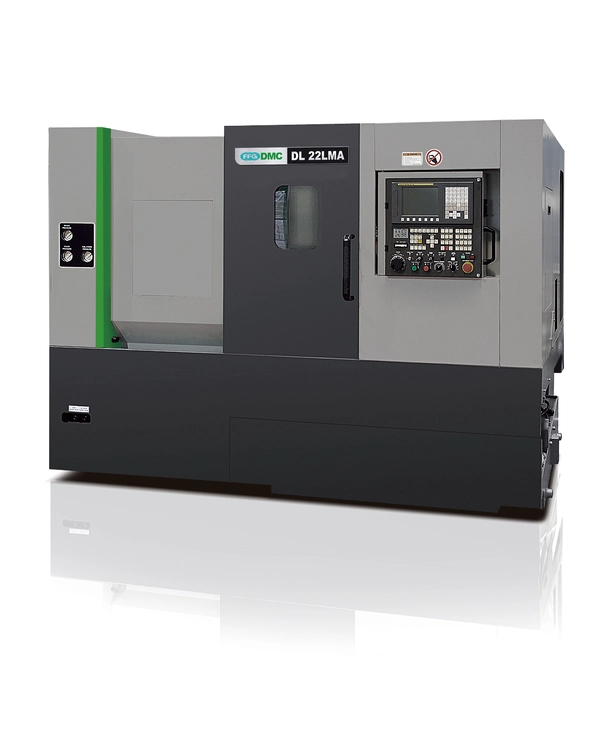

DMC DL22LMA

Have one to sell?
207-572-8578
Precisionmfgconsulting@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
FFG DMC
Model:
DL 22LMA
Status:
For Sale
Country:
United States
Swing21.65"549.91 mm
Machining Length21.65"549.91 mm
Chuck Size8"203.2 mm
Bar Capacity2.56"65.024 mm
Power20 hp14.9 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia11.02"279.91 mm
TailstockYesYes

DL 22LMA, Fanuc 0i-TF, 10.4" LCD, Manual Guide I, 4000RPM, 11/15kw (20HP), 8" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6, X/Z Box Way, Manual Tailstock, Programmable Quill, Chip Conveyor, Bar Feeder Interface, Tool Presetter (Manual Pull Down Type), Parts Catcher, 4 Extra M-Codes, Coolant Flushing Gun, Air Gun, Oil Skimmer
