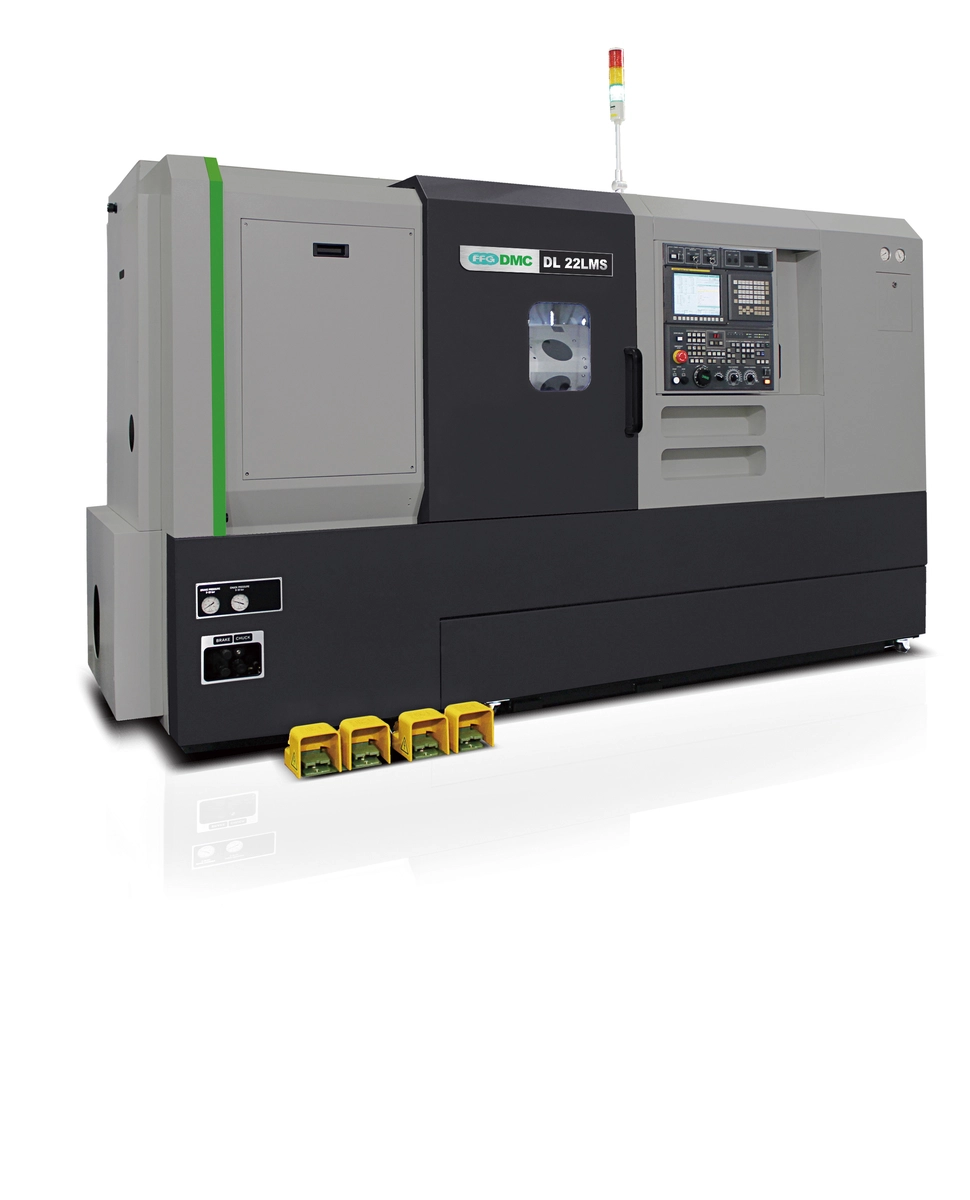

New FFG DMC DL 22LMS | CNC Lathes
Have one to sell?
ConditionNew
1 available
New
DL-22LMS, Fanuc 0i-TF Plus with 10.4" LCD & Manual Guide i, Main Spindle: 4,000RPM | 11/15kw (20HP/25HP) | 8" Chuck, Sub Spindle: 6,000 RPM | 5.5/7.5kW (7.5/10HP) | 6" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6/A2-5, X/Z Box Way, Bar Feeder Interface, Chip Conveyor (side type), Coolant Gun, Oil Skimmer (belt type), Parts Catcher for Main Spindle (with box), Tool Presetter (portable), 4 Extra M-Codes
DL-22LMS, Fanuc 0i-TF Plus with 10.4" LCD & Manual Guide i, Main Spindle: 4,000RPM | 11/15kw (20HP/25HP) | 8" Chuck, Sub Spindle: 6,000 RPM | 5.5/7.5kW (7.5/10HP) | 6" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6/A2-5, X/Z Box Way, Bar Feeder Interface, Chip Conveyor (side type), Coolant Gun, Oil Skimmer (belt type), Parts Catcher for Main Spindle (with box), Tool Presetter (portable), 4 Extra M-Codes
Imperial
| Swing | 21.65" |
| Machining Length | 11.02" |
| Chuck Size | 19.69" |
| Bar Capacity | 2.52" |
| Power | 20.1 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 14.17" |
| Sub Spindle | Yes |
