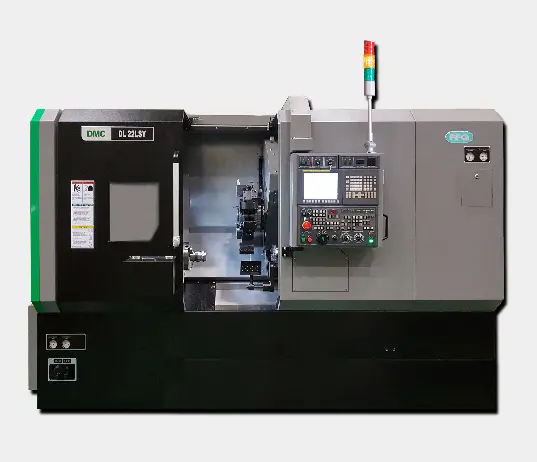

Used FFG DMC DL 22 LSY | CNC Lathes

Have one to sell?
207-572-8578
Precisionmfgconsulting@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
FFG DMC
Model:
DL 22 LSY
Status:
For Sale
Country:
United States
Swing21.65"549.91 mm
Machining Length19.69"500.13 mm
Chuck Size8"203.2 mm
Bar Capacity2.52"64.008 mm
Power25 hp18.6 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia12.99"329.95 mm
Sub SpindleYesYes
ControlCNC (FANUC 0I-TF)CNC (FANUC 0I-TF)

DL-22LSY, Fanuc 0i-TF Plus with Manual Guide i,
Main Spindle: 4000RPM | 15/18.5kw (25HP) | 8" Chuck | 68mm (2.68")
Drawtube ID, Sub Spindle: 5.5/7.5kw (10HP)| 6" Chuck | 30mm (1.18")
Drawtube ID, 12 Mill Turret Stations (Servo), A2-6/A2-5, X/Z Box Way,
Air Gun, Coolant Gun, Bar Feeder Interface, Chip Conveyor (side type),
Tool Presetter (removable), Parts Catcher for Main Spindle (with box), 4 Extra M-Codes
