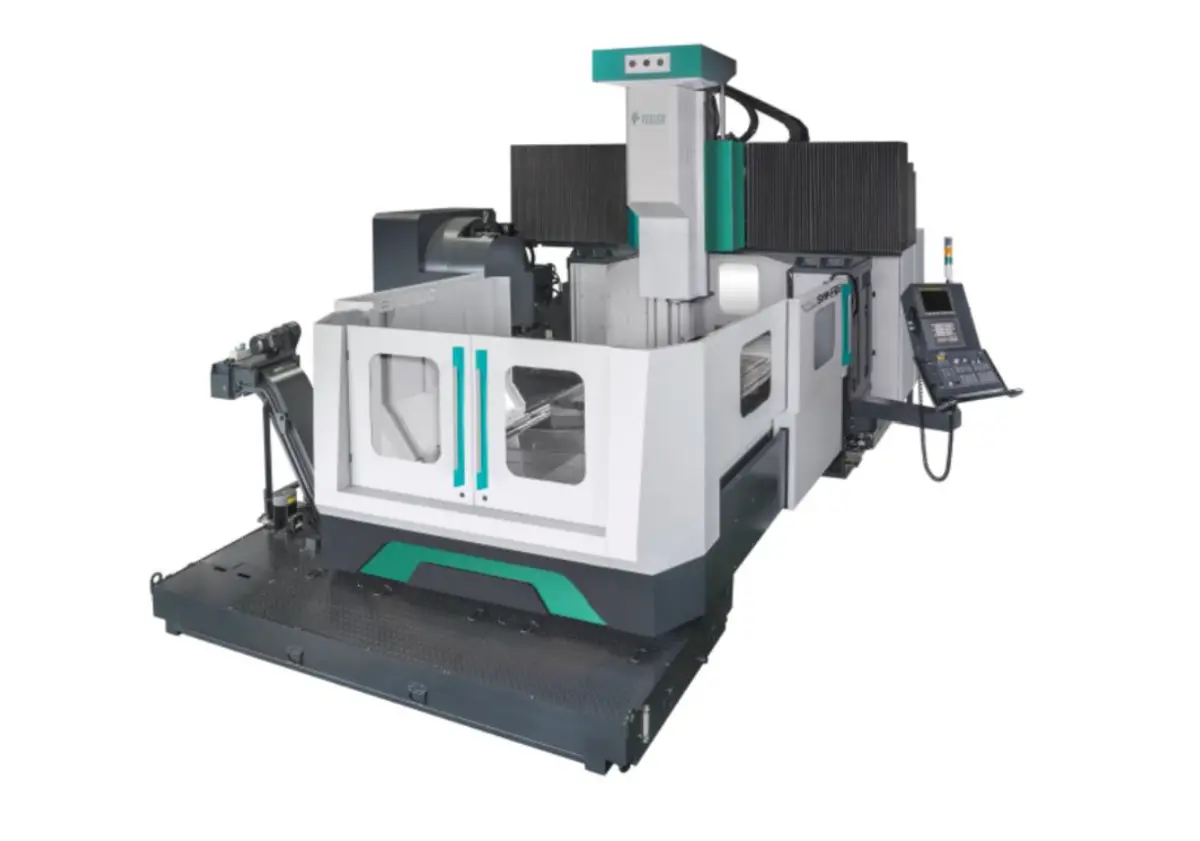

SVW 2113

• Fanuc 0iMF Plus Control
• Double column structure
• 6,000 RPM Spindle (Gear Box Driven)
- CAT #50
- Powerful 33.5HP (25 kW) spindle motor (S3/S6 25%)
- High torque 470 lbf. ft (637 N.m) – S3 25%
• 8,800 lbf. (4,000 kg) Table load capacity
• Spindle oil cooler
• 78.7”x 43.3” (2,000mm x 1,100mm) Table size
• 83” x 48” x 32” (2,100mm x 1,200mm x 800mm) Travel
• 24 ATC
• 945 ipm (24 m/min) X and Y axis, 787 ipm (20 m/min) Z axis rapid speed
• Wide induction hardened and precision ground Y axis guide ways
• Large Linear Roller guide ways (X, Y and Z)
• AICC II
• Spindle air blast
• 1,280M (512KB) Program storage
• Automatic lubrication system (Slide way & Ball screw)
• Air blow cleaning system for the pallet indexing taper cones
• (2) rear chip augers + (1) left side chip conveyor
• 3 Color signal light
• Hydraulic System
• Operator’s manual & electric circuit diagram
• Tool Kit
• Foot switch for tool released
• RS-232C & RJ-45 Terminal interface
• Splash guard
• Operating panel with MPG
• Leveling bolts and pads
