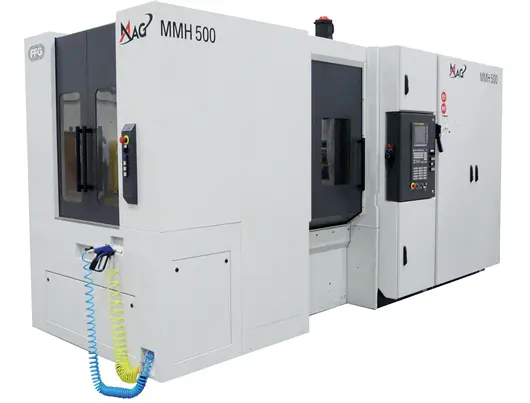

MAG MMH-500
Horizontal Machining CentersX | 30" |
Y | 28" |
Z | 31.5" |
Power | 29.5 hp |
RPM | 15,000 RPM |
# ATC | 40 |
Taper | 40 |
Pallet-W | 19.7" |
Pallet-L | 19.7" |
# Axis | 4 |
Control | CNC (31i-MB) |
Dimensions | L209"xW124"xH110" |
Weight | 37,479 Lb |
Fanuc 31i-MB Control with 10.4" Color LCD, CAT 40, 15,000 RPM Direct Drive Spindle (Greased for Life), 30 HP [22KW], 40 Tool ATC, Manual Load Pallet at Load Station, Rotary Table - B-Axis 22 RPM Direct Drive, Infinite Contouring (0.001 degree), Table Load Capacity - 700kg Payload B-Axis, Table Pallets - (2) 500mm x 500mm with Tapped Holes, Coolant Flushing Chip Flume (Rear Discharge), Chip Augers (Rear Discharge), Self-Contained Coolant System, 500 PSI Coolant thru Spindle ,Chip Conveyor, Coolant Spray Gun at Load Position, Air Blow Off Gun at Load Position, Machine Documentation - (Operator Manuals) Electronic Format (CD)
