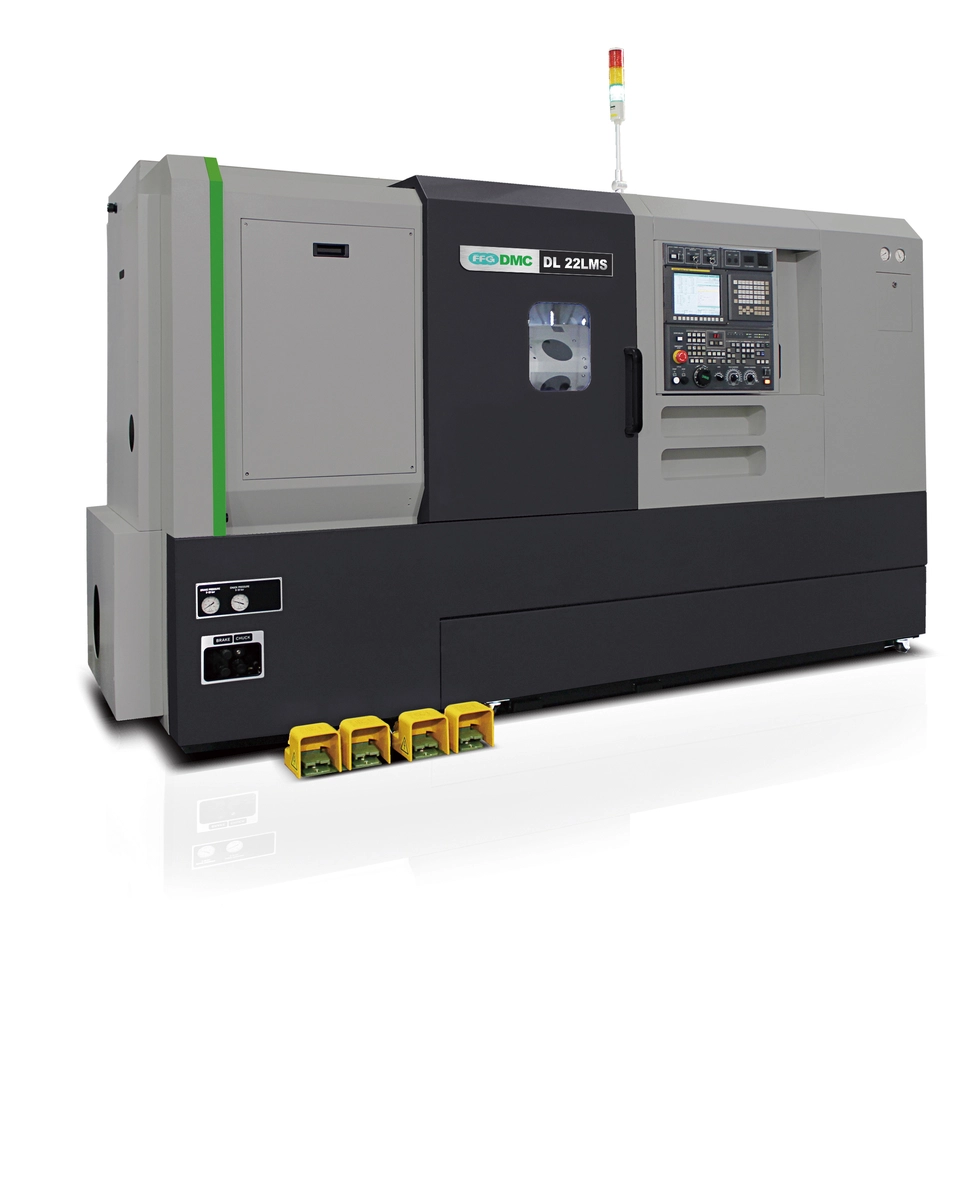

New FFG DMC DL 22 LMS | 5-Axis or More CNC Lathes
Have one to sell?
ConditionNew
1 available
New
DL-22LMS, Fanuc 0i-TF Plus with 10.4" LCD & Manual Guide i, Main Spindle: 4,000RPM | 11/15kw (20HP/25HP) | 8" Chuck, Sub Spindle: 6,000 RPM | 5.5/7.5kW (7.5/10HP) | 6" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6/A2-5, X/Z Box Way, Bar Feeder Interface, Chip Conveyor (side type), Coolant Gun, Oil Skimmer (belt type), Parts Catcher for Main Spindle (with box), Tool Presetter (portable), 4 Extra M-Codes
DL-22LMS, Fanuc 0i-TF Plus with 10.4" LCD & Manual Guide i, Main Spindle: 4,000RPM | 11/15kw (20HP/25HP) | 8" Chuck, Sub Spindle: 6,000 RPM | 5.5/7.5kW (7.5/10HP) | 6" Chuck, 68mm (2.68") Drawtube ID, 12 Mill Turret Stations (Servo, BMT 55), A2-6/A2-5, X/Z Box Way, Bar Feeder Interface, Chip Conveyor (side type), Coolant Gun, Oil Skimmer (belt type), Parts Catcher for Main Spindle (with box), Tool Presetter (portable), 4 Extra M-Codes
Imperial
| # Axis | 6 |
| Swing | 21.6" |
| Machining Length | 19.68" |
| Chuck Size | 8" |
| Bar Capacity | 2.56" |
| Power | 25 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 11" |
| Control | CNC (FANUC 0I-TF) |
| Dimensions | (L x W) 3,320 mm (130.7”) x 1,600 (62.99”) |
| Weight | 4,500 kg (9,921 lbs.) |
