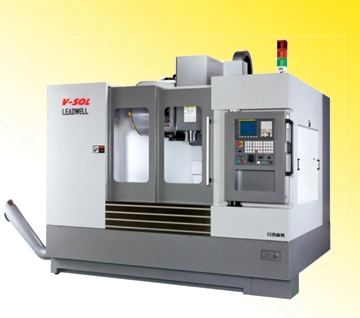

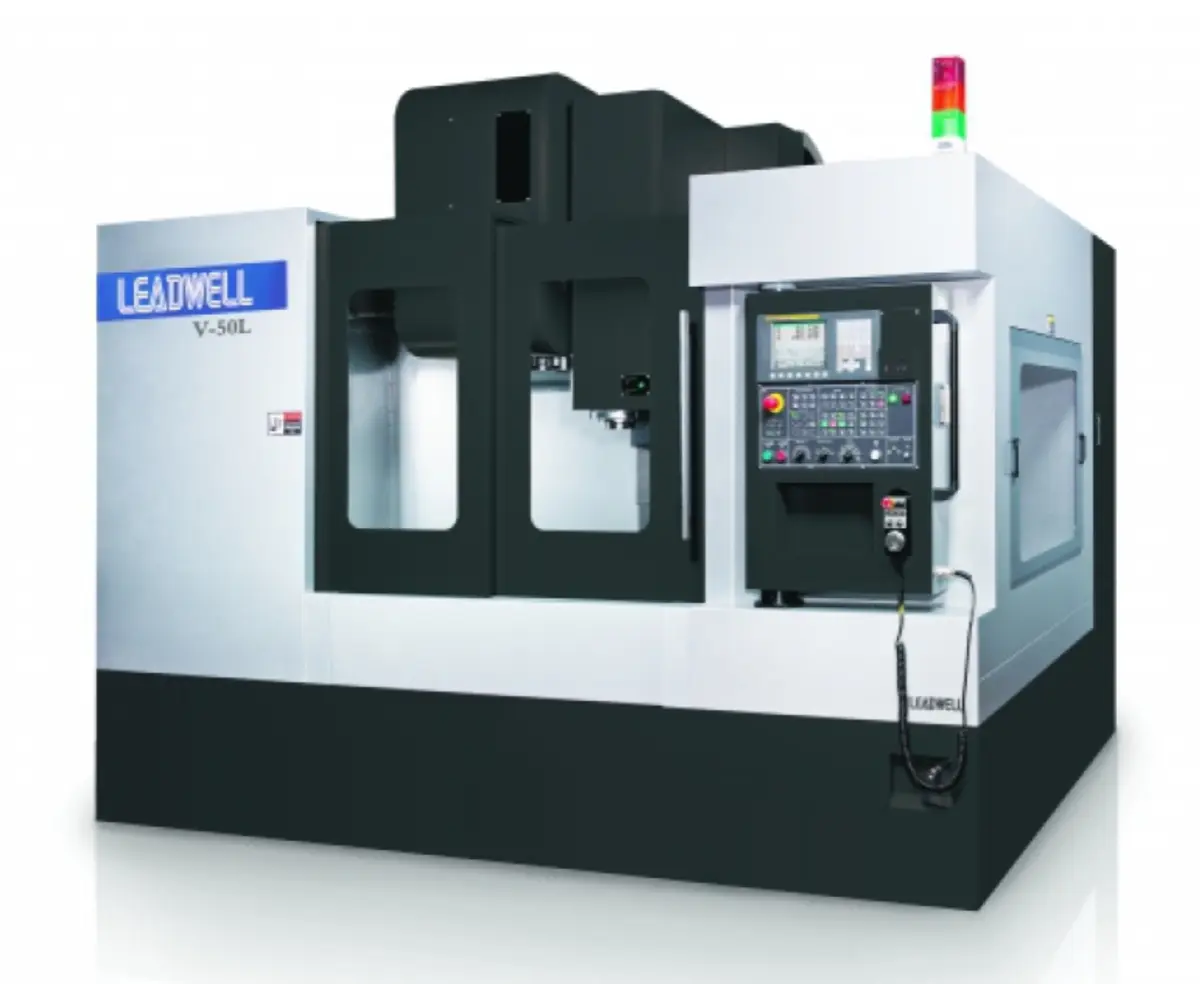

New LEADWELL V-50L | Vertical Machining Centers

Description

CONTROLLER: 0i-MF – X/Y/Z Axis Travel 50 inches/25 inches/24 inches, Table size 55.91x24.02 inches, Permissible mass of workpiece: 2645.55 lbs, Spindle speed: 10000 RPM, Max. spindle torque (30min): 86.92 lb-ft, Feed rate: 1417.32/1417.32/1417.32 inches per minute, Tool storage cap: 24 (BT-40), Max. tool length: 11.81 inches, Spindle motor (cont./30min): 20.11/24.78 HP, X/Y/Z- Axis feed motor: 5.37/5.37/5.37 HP, Power supply: 35 KVA, Machine size: 151.18x86.61x107.13 inches. OPTIONS INCLUDED: Full enclosed splash guard, Heat exchanger, Rigid tapping, Flushing sys., Spindle oil chiller, Spindle air purge, Air gun & coolant gun, Top cover & Pallet packing. Additional OPTION INCLUDED: Chip conveyor (Chain type) + bucket.
