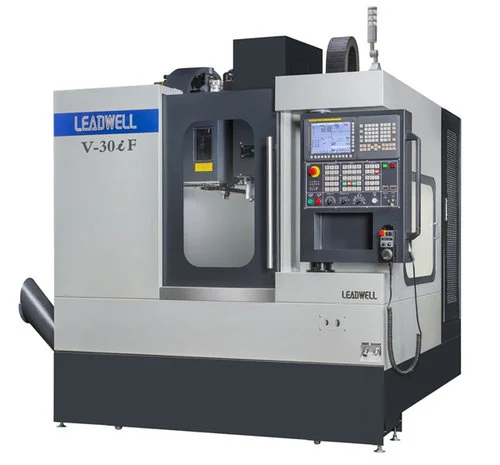

New LEADWELL V-30IF | Vertical Machining Centers

Description

CONTROLLER: 0i-MF – X/Y/Z Axis Travel 31.50 inches/18.11 inches/20.08 inches, Table size 33.86x17.72 inches, Permissible mass of workpiece: 992.08 lbs, Spindle speed: 10000 RPM, Max. spindle torque: 80.95 lb-ft, Feed rate: 1889.76/1889.76/1417.32 inches per minute, Tool storage cap: 24, Max. tool length: 9.84 inches, Spindle motor (cont./S3-25%): 14.75/20.11 HP, X/Y/Z-Axis feed motor: 5.37/5.37/5.37 HP, Power supply: 30 KVA, Machine size: 96.06x83.35x99.84 inches. OPTIONS INCLUDED: Full enclosed splash guard, Heat exchanger, Spindle oil chiller, Spindle air purge, Spindle coolant ring, Top Cover, Air gun & coolant gun, Pallet packing. Additional OPTIONS INCLUDED: Oil skimmer, TS-27 Tool setter, 4-axis prep & Chip conveyor (Chain type) + bucket.
