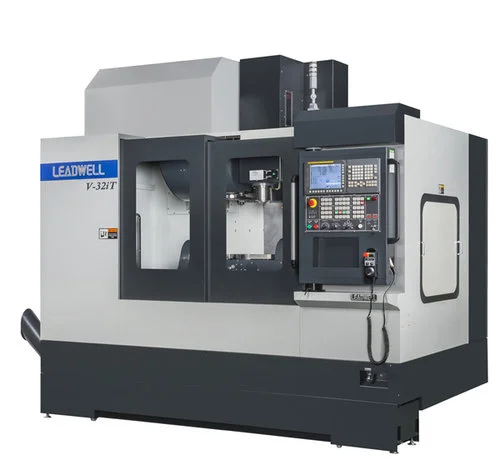

Leadwell V-30IT

Description

Travels: X = 800 mm (31.5”), Y= 460 mm (18.1”), Z = 386 mm (15.2”), A-Axis Rotation Angle +30° ~ -120°, C-Axis Rotation Angle 0°~360°, 8.07" Dia Intergrated, Trunnion Table ~ #40 Taper ~ 24 Tool Arm ATC ~ Fanuc OiMF Plus ~ 12,000 RPM Spindle ~ Linear Way, 8.07" Dia Intergrated Trunnion Table, 11.8" x 17.7" T-Slotted Table, 20Hp. Fanuc A/C Spindle Motor *, 1417 IPM Rapid X,Y & Z , Cross-Roller Linear Ways on X, Y & Z axes, Dual Contact Spindle Taper ~ BT-40 or Cat-40, 24 Tool Arm Style Automatic Tool Changer, Front Lift auger (Horn), Spindle Air Blow to clean tool, Flood Coolant Unit & Spindle Coolant Ring, Spindle Oil Chiller, Alarm & Work Light, Full Guarding, Heat Exchanger for cooling inside electrical cabinet, Machine is Laser Calibrated for full travel accuracy
