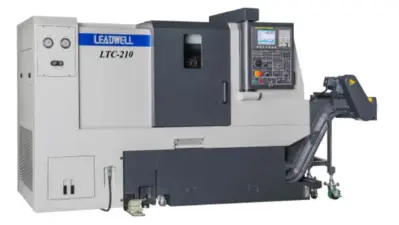

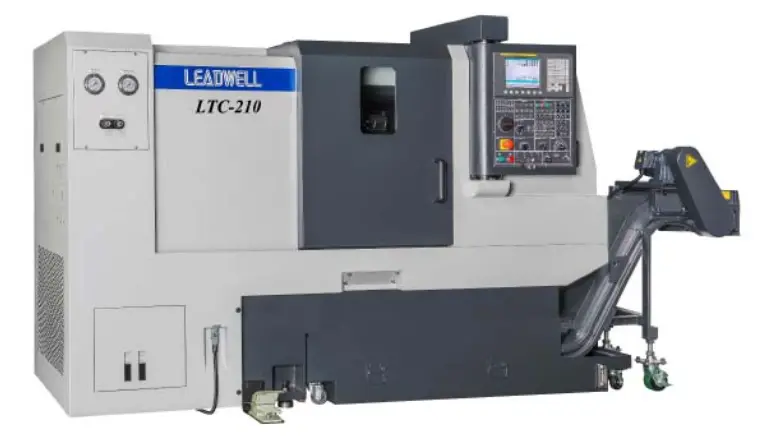

New LEADWELL LTC-210Y | 5-Axis or More CNC Lathes

20Hp. Fanuc B22i A/C Spindle Motor
10.4" Color LCD Display
400 Part Programs
10" 3-jaw Power Chuck with 3.0" Bar Capacity
64 Bit Micro Processor
Automatic Tool Compensation
3,500 RPM Spindle
2MByte of Program Memory
Constant Surface Speed
Highly Rigid 30 deg. Slant Bed Construction - Box Ways
64 Tool Offsets
RS-232 Serial Port Interface
BMT 55 12 Live Tool Station Bi-directional Servo Driven Turret
Can Cycle (G70~G76) - Type I Only
Tool & Wear Offsets
Manual Tailstock with Programmable Quill
Run Hour & Parts Counter
Manual Pulse Generator
Tool Setter
2MB of Program Memory
Backlash Compensation
Chip Conveyor and Bucket
Tool Nose Radius Comp
X Axis Radius or Diameter
Bar Feed Preparation
Background Editing
Chamfering/Corner R
Parts Catcher with BucketTool
Setter Function
G54 Work Offset System
Y Axis Capability
PCMCIA Memory Card Slot
USB Connection
Heat Exchanger
Embedded Ethernet Connection
Helical Interpolation
(3) set of Soft Jaws & (1) set of Hard Jaws
AICC II Block Look Ahead for 200 Blocks
Standard Tooling Package
