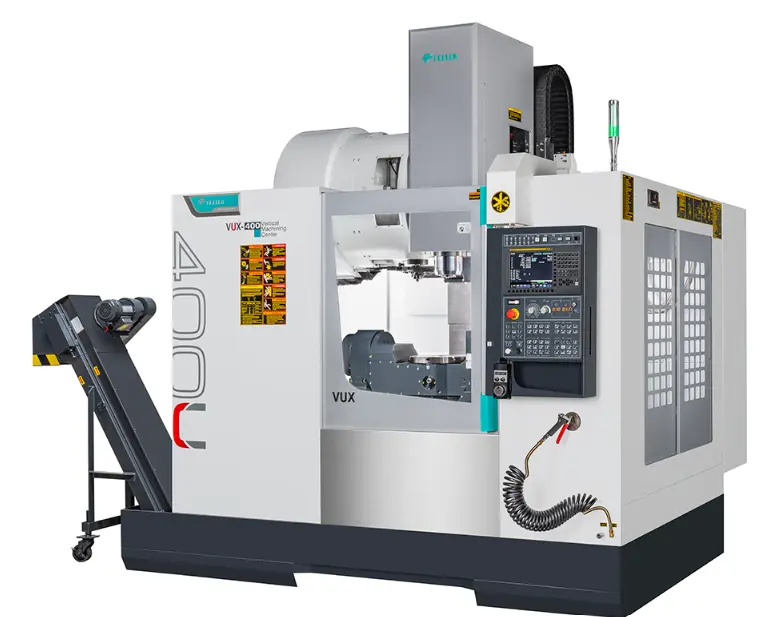

New FEELER VUX - 400 | Vertical Machining Centers (5-Axis or More)

Description

Travels: X = 650 mm (25.6”), Y= 520 mm (20.5”), Z = 480 mm (18.9”), A-Axis Rotation Angle +30° ~ -120°, C-Axis Rotation Angle 0°~360°, Fanuc 0iMF Plus, 10.4” LCD monitor, AICC II, Manual Guide I, Fine Surface Machining, (8) M-Codes, Auto Power Off, Data Server + Ethernet, 400 Block Lookahead, Tilted Working Plane Command, SETCO – 15,000 DDS with Oil Cooler, 33.5 HP (25kW),Spindle Thermal Compensation, Table: DETRON - 13.77” (350 mm) Diameter, 200 lbs. (440 kg) load capacity, Hydraulic interface (2 inlets & 2 outlets on the table), 40 Tools, CAT #40 (Dual Contact) – MAS1 Pull Stud, Coolant through spindle interface + top roof + Electrical Wiring (70BAR) rotary union, PMI - X/Y/Z roller type linear guide ways – PMI, FAGOR Scales on ALL Axis (X, Y, Z, A, C), Probes: OMP60 touch probe workpiece measurement, Auto tool length measurement and breakage detect TS-27R, Air Gun, Flushing System & Coolant gun, Screw Type Chip Conveyor without bucket, Dual Y-Axis Chip Screws, Oil Skimmer Box (new design – box connect to coolant tank), Extra coolant tank 125 L (Size : 1870x460x200mm ( approx. 125L ) + 2” water pipe), Flood Coolant Pump upgrade - 7 Bar with 1.00" diameter hose, Spindle Coolant Ring, Spindle Coolant & Air Nozzles, Automatic Lubrication System, Front door interlock (switch type instead of lock type), Two sides door interlock (switch type instead of lock type), 3 color tower signal light, Extra work light, Air conditioner for electric cabinet, E-manuals provided by QR code
