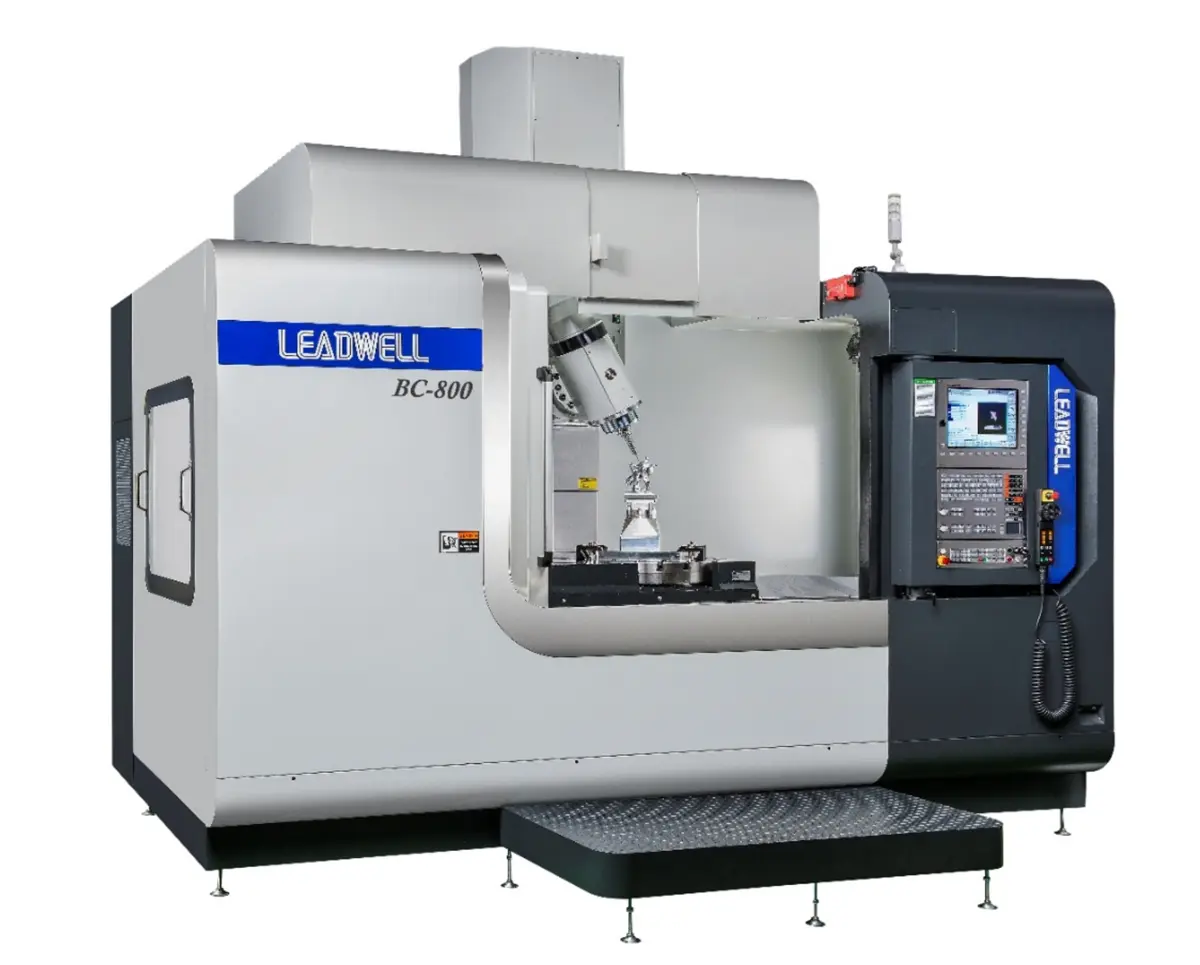

LEADWELL BC-800T

Description

• Fanuc 31iB Plus controller
• 15” LCD monitor
• Spindle
- HSK-63T
- 15,000 rpm built in spindle.
- Powerful 25 HP (18.5 kW)
- Oil Chiller
• Table
- Ø 27.6” (700mm) rotary on the 1,700mm x 720mm (66.9” x 28.3”) table
- 1,320 lbs. (600 kg) load capacity on the C axis
- 3,080 lbs. (1400 kg) load capacity on the square table.
- Max 800 rpm rotation speed.
• ATC 30 Tools
• X / Y / Z Roller guide ways
• C axis linear scale
• Air conditioner
• Auto power off
• Chip conveyor (Hinge belt type)
• Internal augers
• Surrounding coolant system
• Air conditioner
• 3 color tower signal light
• Fast 30 m/min (1,181 IPM) X, Y and Z rapid traverse
• Full enclosure guarding
• Work light
• Alarm lamp
• Spindle annular coolant jet
