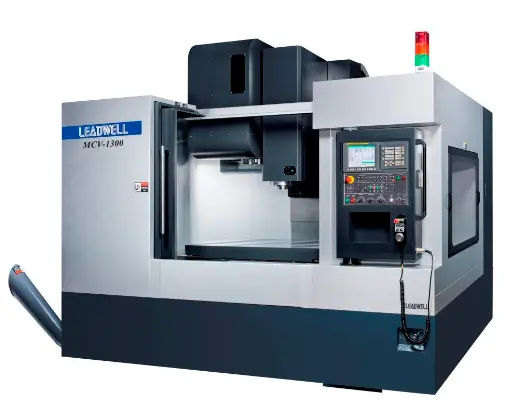

LEADWELL MCV 1300i

Description

STANDARD EQUIPMENT
* Fanuc 0iMF Control w/ 10.4” Color LCD display
* 2Mbyte of Program Memory
* AICC II+ (200 blocks look ahead)
* Fanuc Fine Surface Machining Package includes:
 Smooth Tolerance Control
 Jerk Control
* 34Hp spindle motor (470ft/lbs@375rpm)
* 2-Speed Gear Box (4:1 Ratio)
* 10,000 RPM Spindle
* 50 Taper spindle – CT50 or BT50
* Spindle Oil Chiller
* CTS Preparation (w/o Rotary Union)
* 4th Axis Preparation
* High precision hybrid ceramic angular contact bearings
* Spindle Air Blow to clean tool
* Flood Coolant Unit & Spindle Coolant Ring
* Spindle orientation
* Spindle speed override 50 – 150%
* Rigid tapping
* Custom Macro B (User Definable)
* 32 Tools ATC Cam Type Double Arm
* Portable Manual pulse generator
* Program and data protection key switch
* USB, PCMCIA, RS-232 & Embedded Ethernet Connections
* Leadwell GUI Tool & Work Coordinate Setup Software
* Renishaw GUI Software
* Box Ways All 3 Axes
* Double Pre-tensioned ballscrews
* 787 IPM Rapid Traverse rate (X, Y & Z)
* Metered piston distributor lubrication
* Telescopic covers
* Dual base screw type chip augers
* Chain-Type Chip Conveyor w/Big Tank
* Base Wash
* Full enclosure guarding
* Flood coolant with large separate coolant tank
* Alarm & Work Light
* Heat Exchanger for Electrical Cabinet
* Instruction manual, parts list, and electrical drawings
* Fanuc operator and maintenance manuals on DVD
